5kW Hybrid Solar System

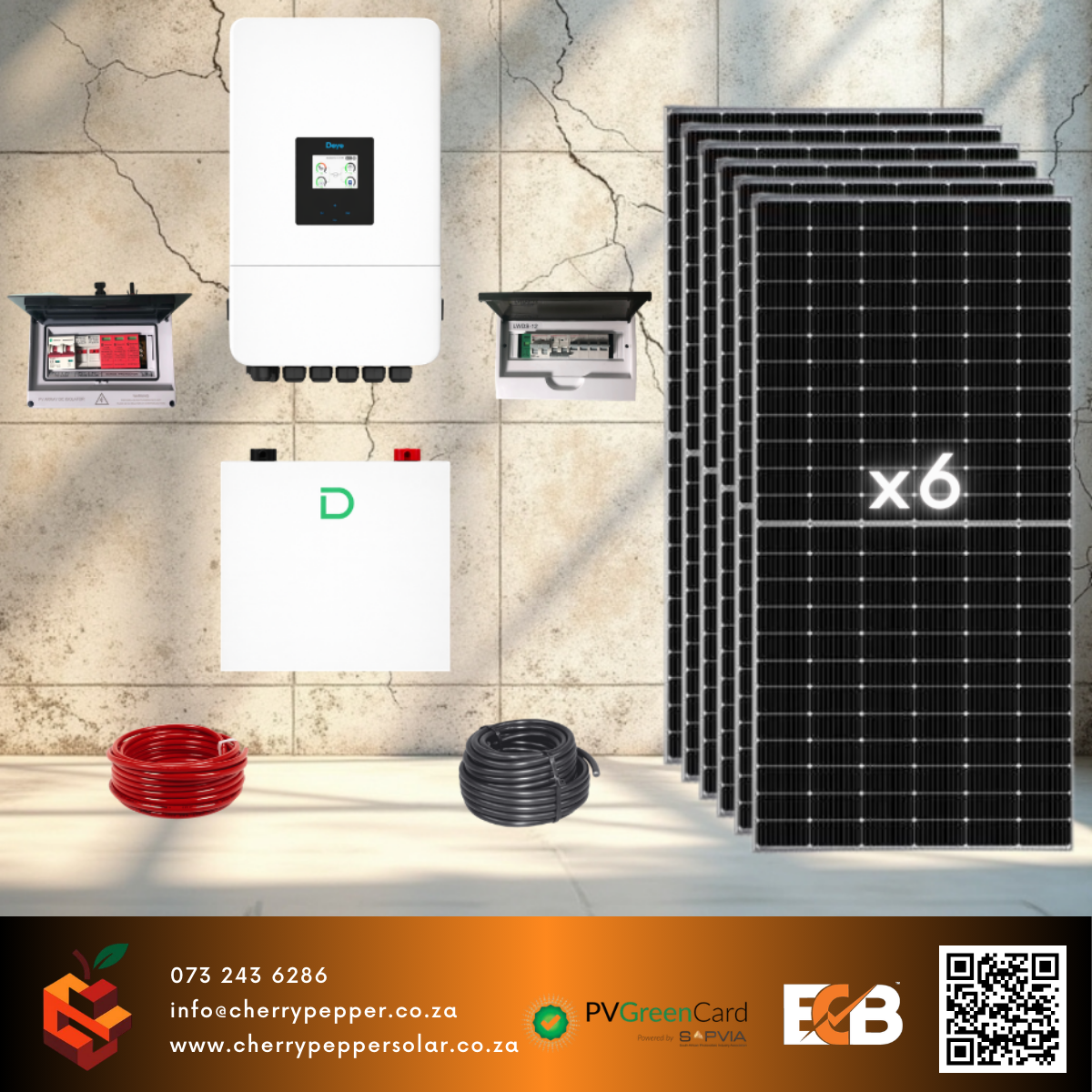

Deye 5kW Single-Phase Hybrid Inverter + 5kWh Lithium Battery + 615W Bifacial Solar Panels

This solar system is designed to provide reliable backup power, reduced electricity costs, and increased energy independence for residential homes and small offices.

The system combines a Deye 5kW Single-Phase Hybrid Inverter, a 5kWh lithium battery, and high-efficiency bifacial solar panels to maximise solar energy production while ensuring dependable backup power during load shedding or grid outages.

All systems are installed by certified professionals and include full installation and a Certificate of Compliance (COC).

---

System Components

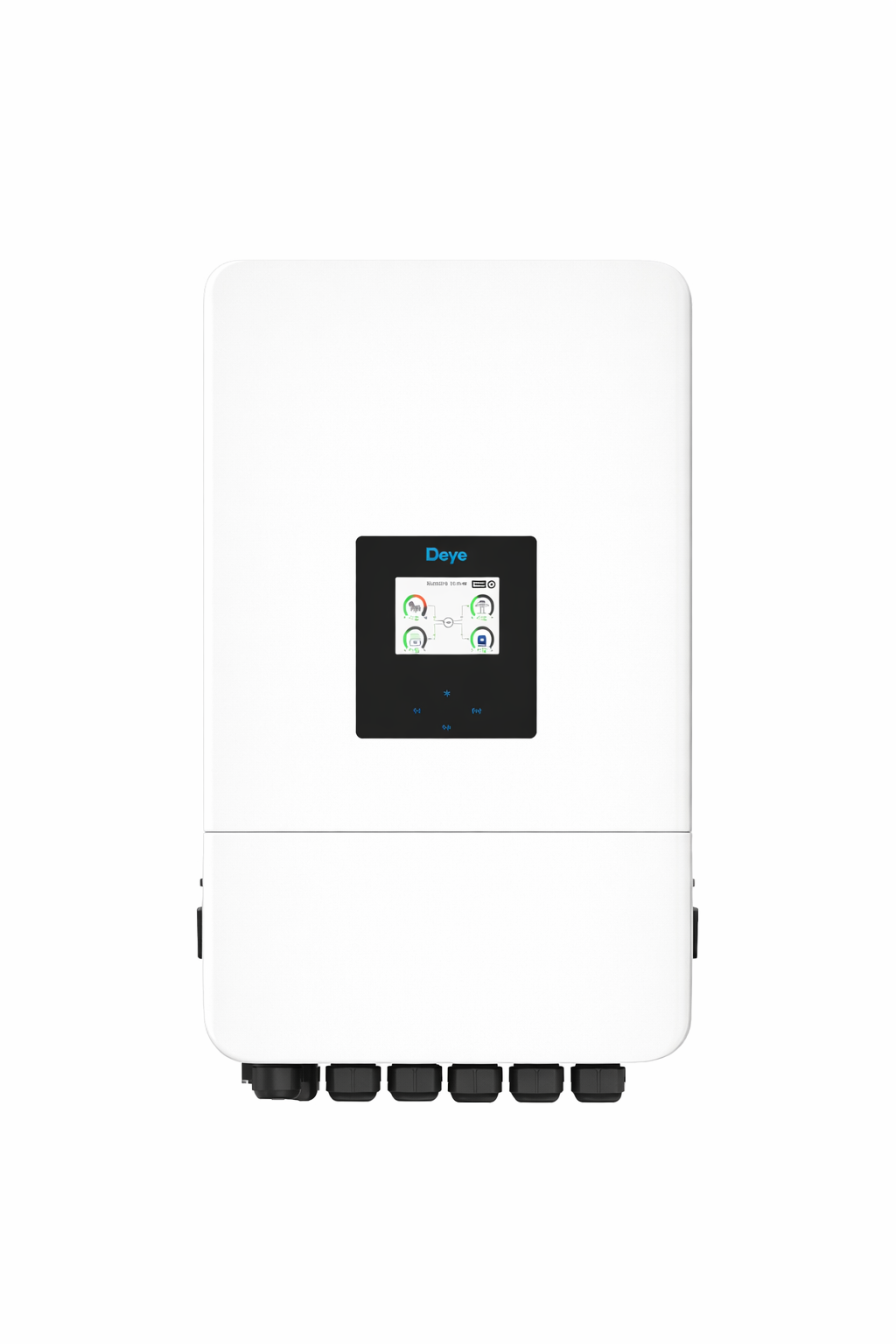

Deye 5kW Single-Phase Hybrid Inverter

The Deye 5kW Hybrid Inverter is a compact and efficient energy management solution designed for residential solar systems requiring reliable backup power and smart energy control.

Key Features

• 5kW single-phase hybrid inverter
• Dual MPPT trackers for optimal solar harvesting
• Compatible with lithium battery systems
• Grid-tied and backup functionality
• Generator input support
• Intelligent energy management
• Smart load prioritisation
• Remote monitoring via WiFi or data logger
• Automatic switching during power outages

Specifications

• Rated Output Power: 5kW
• Maximum PV Input Voltage: 500V
• Battery Voltage: 48V
• Dual MPPT inputs
• High conversion efficiency
• Intelligent load management

---

Lithium Battery Backup

5kWh | 48V | LiFePO₄

The 5kWh lithium battery provides reliable backup power and energy storage for essential household loads during power outages.

Key Features

• Lithium Iron Phosphate (LiFePO₄) chemistry
• 5kWh storage capacity
• Long cycle life for extended battery lifespan
• Integrated Battery Management System (BMS)
• High safety and thermal stability
• Compact and space-efficient design

Specifications

• Capacity: 5kWh
• Voltage: 48V
• Depth of Discharge: up to 90%
• Cycle Life: 6000+ cycles

---

Solar Panels

615W Bifacial Solar Panels (×6)

High-efficiency bifacial solar modules capture sunlight from both the front and rear sides of the panel, increasing solar energy production and improving system efficiency.

Specifications

• Panel Output: 615W per panel
• Total Solar Capacity: 3.69kWp
• Bifacial energy gain capability
• High-efficiency mono-crystalline cells
• Excellent low-light performance
• Durable tempered glass construction
• Long manufacturer warranty

---

Mounting System

Lumax Solar Mounting Structure

All solar panels are installed using premium Lumax aluminium mounting systems.

Benefits

• High-strength corrosion-resistant aluminium
• Fast installation design
• Long lifespan in outdoor conditions
• Engineered for South African roof types
• Secure wind and weather resistance

---

Electrical Protection & Balance of System

To ensure a safe, reliable, and compliant installation, the system includes all required electrical protection and connection components.

DC Side Components

• Solar DC isolator switch
• DC surge protection
• Solar PV cables (UV resistant)
• MC4 connectors
• PV string fuses

AC Side Components

• AC isolator
• AC distribution box
• AC surge protection
• Circuit breakers
• Earth leakage protection

Battery Components

• Battery isolator
• Battery protection fuse
• Battery communication cables
• Battery interconnection cables

---

Cabling & Installation Materials

• Solar DC cabling
• AC cabling
• Cable trunking and conduit
• Earthing system and bonding
• Cable glands and connectors

---

Monitoring & Smart Energy Management

Optional Deye monitoring system enables:

• Remote monitoring via mobile app
• Real-time system performance tracking
• Detailed energy usage analytics
• Firmware updates
• Smart energy scheduling

---

Installation

The system includes complete professional installation by certified solar technicians.

Installation Includes

• Site inspection and system design
• Solar panel installation
• Inverter installation
• Battery installation
• Electrical protection installation
• System commissioning
• Monitoring setup

---

Certification & Compliance

Every installation includes:

✔ Electrical Certificate of Compliance (COC)
✔ Installation by qualified and certified installers
✔ Compliance with South African electrical regulations

---

Installation Pricing Notice

Displayed prices are based on typical installations. Final pricing may vary depending on site conditions such as roof type, cable run distance, mounting requirements, and electrical infrastructure. Product availability may also affect pricing, and prices are subject to change without notice.
