12kW Hybrid Solar System

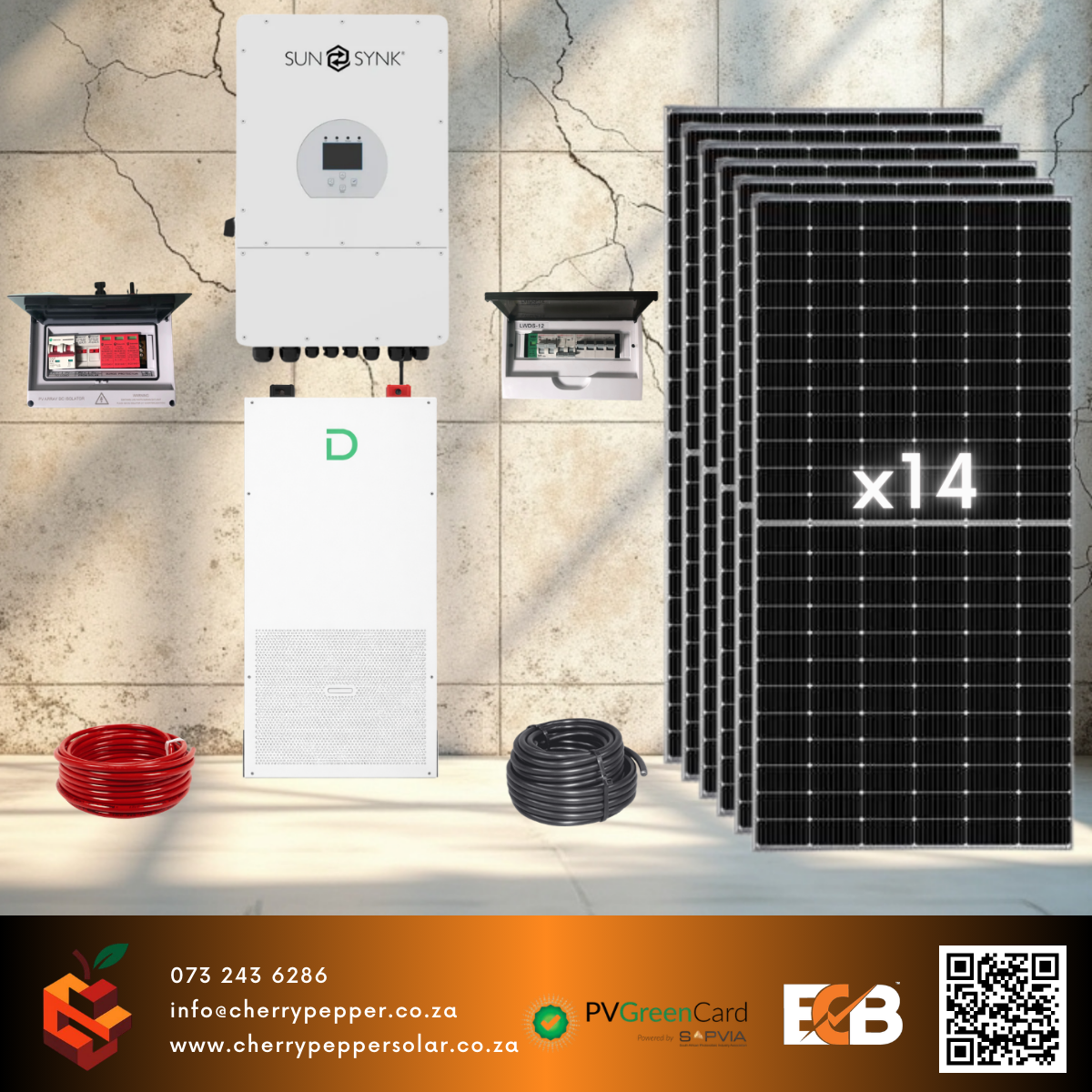

Sunsynk 12kW Hybrid Inverter + Dyness 14.3kWh Lithium Battery + 615W Bifacial Solar Panels

This solar system is designed to provide powerful backup capacity, major electricity savings, and high solar generation for larger homes, estates, and small commercial properties.

The system combines a Sunsynk 12kW Hybrid Inverter, a Dyness 14.3kWh Lithium Battery, and high-efficiency bifacial solar panels to maximise solar production while providing dependable backup power during outages.

All systems are installed by certified professionals and include full installation and a Certificate of Compliance (COC).

---

System Components

Sunsynk 12kW Hybrid Inverter

The Sunsynk 12kW Hybrid Inverter is a powerful and flexible energy management solution designed for residential and commercial solar installations. It provides seamless integration between solar panels, battery storage, and grid power.

Key Features

• 12kW single-phase hybrid inverter
• Dual MPPT trackers for optimal solar harvesting
• Parallel capability for larger systems
• Compatible with Sunsynk low-voltage lithium batteries
• Intelligent energy management
• Grid-tied and backup functionality
• Generator compatibility
• Remote monitoring via Sunsynk app and data logger
• Advanced load prioritisation and scheduling

Specifications

• Rated Output Power: 12kW
• Max PV Input Voltage: 500V
• Battery Voltage: 48V
• Dual MPPT inputs
• High conversion efficiency
• WiFi / app monitoring compatible

---

Dyness Lithium Battery

Dyness 14.3kWh Lithium Battery

14.3kWh | LiFePO4 Energy Storage

The Dyness 14.3kWh Lithium Battery provides large-capacity storage with excellent cycle life and reliable performance, ideal for homes with higher energy consumption or larger solar systems.

Key Features

• Lithium Iron Phosphate (LFP) battery chemistry
• 14.3kWh storage capacity
• Long lifespan with 6000+ cycles
• Advanced Battery Management System (BMS)
• Safe and stable lithium battery technology
• Expandable storage capacity
• Designed for residential and commercial solar systems

Specifications

• Capacity: 14.3kWh
• Battery Voltage: 51.2V
• Depth of Discharge: up to 90%
• Cycle life: 6000+ cycles
• Integrated BMS protection system
• Expandable for future battery upgrades

---

Solar Panels

615W Bifacial Solar Panels (x14)

High-efficiency bifacial solar panels generate power from both the front and rear of the panel, increasing total energy production.

Specifications

• Panel Output: 615W per panel
• Total Solar Capacity: 8.61kWp
• Bifacial energy gain capability
• High efficiency mono-crystalline cells
• Excellent low-light performance
• Durable tempered glass construction
• Long lifespan with manufacturer warranty

---

Mounting System

Lumax Solar Mounting Structure

All panels are installed using premium Lumax aluminium mounting systems designed for durability and fast installation.

Benefits

• High-strength aluminium construction
• Corrosion-resistant materials
• Long lifespan in outdoor conditions
• Engineered for South African roof types
• Secure mounting with strong wind resistance

---

Electrical Protection & Balance of System

To ensure a safe, reliable, and compliant installation, the system includes all required electrical protection and connection components.

---

DC Side Components

• Solar DC isolator switch
• DC combiner box (if required)
• DC surge protection
• Solar PV cables (UV resistant)
• MC4 connectors
• PV string fuses

---

AC Side Components

• AC isolator switch
• AC distribution box
• AC surge protection
• Circuit breakers
• Earth leakage protection

---

Battery Components

• Battery isolator
• Battery protection fuse
• Battery communication cables
• Battery interconnection cables

---

Cabling & Installation Materials

• Solar DC cabling
• AC cabling
• Cable trunking and conduit
• Earthing system and bonding
• Cable glands and connectors

---

Monitoring & Smart Energy Management

Optional Sunsynk Data Logger enables:

• Real-time system monitoring via mobile app
• Energy production and consumption tracking
• System alerts and diagnostics
• Remote firmware updates
• Smart energy management scheduling

---

Installation

The system includes complete professional installation by certified solar technicians.

Installation Includes

• Site inspection and system design
• Solar panel installation
• Inverter installation
• Battery installation
• Electrical protection installation
• System commissioning
• Monitoring setup

---

Certification & Compliance

Every installation includes:

✔ Electrical Certificate of Compliance (COC)
✔ Installation by qualified and certified installers
✔ Compliance with South African electrical regulations

---

Installation Pricing Notice

Displayed prices are based on typical installations. Final pricing may vary depending on site conditions such as roof type, cable run distance, mounting requirements, and electrical infrastructure. Product availability may also affect pricing, and prices are subject to change without notice.
