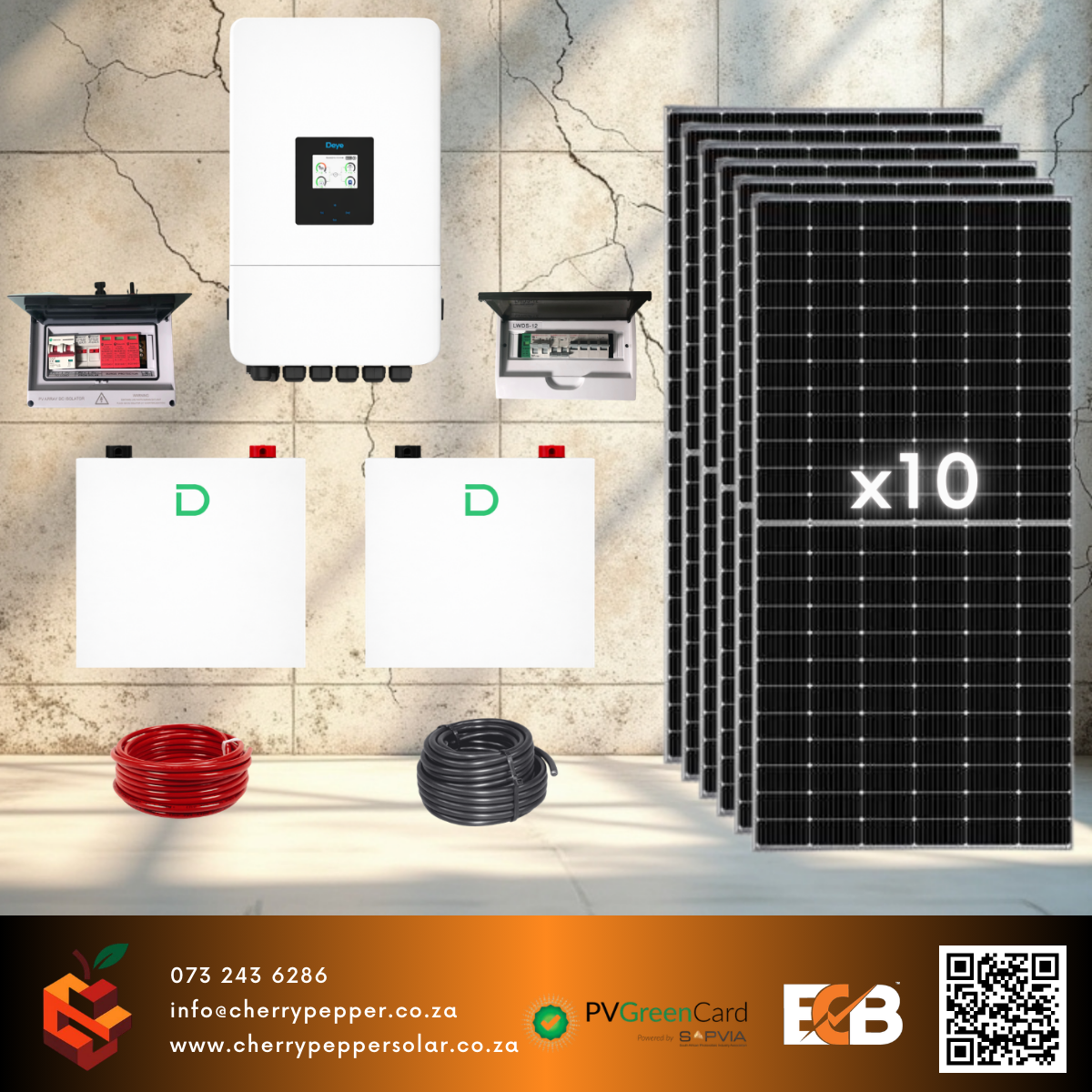

8kW Hybrid Solar System

Deye 8kW Single-Phase Hybrid Inverter + Dyness Lithium Batteries + 615W Bifacial Solar Panels

This solar system is designed to provide reliable backup power, reduced electricity costs, and increased energy independence for residential properties and small businesses.

The system combines a Deye 8kW Single-Phase Hybrid Inverter, Dyness Lithium Batteries, and high-efficiency bifacial solar panels to maximise solar energy production while ensuring dependable backup power during power outages.

All systems are installed by certified professionals and include full installation and a Certificate of Compliance (COC).

---

System Components

Deye 8kW Single-Phase Hybrid Inverter

The Deye 8kW Hybrid Inverter delivers powerful energy management with advanced solar optimisation and seamless battery integration.

Key Features

• 8kW single-phase hybrid inverter
• Dual MPPT trackers for optimal solar harvesting
• Compatible with lithium battery systems
• Grid-tied and backup functionality
• Generator input support
• Intelligent energy management
• Smart load scheduling and prioritisation
• Remote monitoring capability via WiFi or data logger
• Automatic switching during power outages

Specifications

• Rated Output Power: 8kW
• Maximum PV Input Voltage: 500V
• Battery Voltage: 48V
• Dual MPPT inputs
• High conversion efficiency
• Intelligent load management

---

Dyness Lithium Batteries

Dyness DL5.0C Lithium Batteries

2 × 5.12kWh | 51.2V | LiFePO₄

The Dyness DL5.0C Lithium Battery provides reliable and scalable energy storage designed for residential hybrid solar systems.

Key Features

• Lithium Iron Phosphate (LiFePO₄) battery chemistry
• 10.24kWh total storage capacity (2 batteries)
• Long cycle life for extended battery lifespan
• Integrated Battery Management System (BMS)
• High safety and thermal stability
• Expandable storage capacity
• Remote monitoring capability

Specifications

• Capacity: 5.12kWh per battery
• Total Storage: 10.24kWh
• Voltage: 51.2V
• Depth of Discharge: up to 90%
• Cycle Life: 6000+ cycles
• Expandable battery system

---

Solar Panels

615W Bifacial Solar Panels (×10)

High-efficiency bifacial solar modules capture sunlight from both the front and rear sides of the panel, increasing energy production and overall system efficiency.

Specifications

• Panel Output: 615W per panel
• Total Solar Capacity: 6.15kWp
• Bifacial energy gain capability
• High-efficiency mono-crystalline cells
• Excellent low-light performance
• Durable tempered glass design
• Long lifespan with manufacturer warranty

---

Mounting System

Lumax Solar Mounting Structure

All solar panels are installed using premium Lumax aluminium mounting systems.

Benefits

• High-strength corrosion-resistant aluminium
• Fast and efficient installation design
• Long lifespan in outdoor conditions
• Engineered for South African roof types
• Secure wind and weather resistance

---

Electrical Protection & Balance of System

To ensure a safe, reliable, and compliant installation, the system includes all required electrical protection and connection components.

DC Side Components

• Solar DC isolator switch
• DC combiner box (if required)
• DC surge protection
• Solar PV cables (UV-resistant)
• MC4 connectors
• PV string fuses

AC Side Components

• AC isolator
• AC distribution box
• AC surge protection
• Circuit breakers
• Earth leakage protection

Battery Components

• Battery isolator
• Battery protection fuse
• Battery communication cables
• Battery interconnection cables

---

Cabling & Installation Materials

• Solar DC cabling
• AC cabling
• Cable trunking and conduit
• Earthing system and bonding
• Cable glands and connectors

---

Monitoring & Smart Energy Management

Optional Deye monitoring system enables:

• Remote monitoring via mobile app
• Real-time system performance tracking
• Detailed energy usage analytics
• Firmware updates
• Smart energy scheduling

---

Installation

The system includes complete professional installation by certified solar technicians.

Installation Includes

• Site inspection and system design
• Solar panel installation
• Inverter installation
• Battery installation
• Electrical protection installation
• System commissioning
• Monitoring setup

---

Certification & Compliance

Every installation includes:

✔ Electrical Certificate of Compliance (COC)
✔ Installation by qualified and certified installers
✔ Compliance with South African electrical regulations

---

Installation Pricing Notice

Displayed prices are based on typical installations. Final pricing may vary depending on site conditions such as roof type, cable run distance, mounting requirements, and electrical infrastructure. Product availability may also affect pricing, and prices are subject to change without notice.
